Description

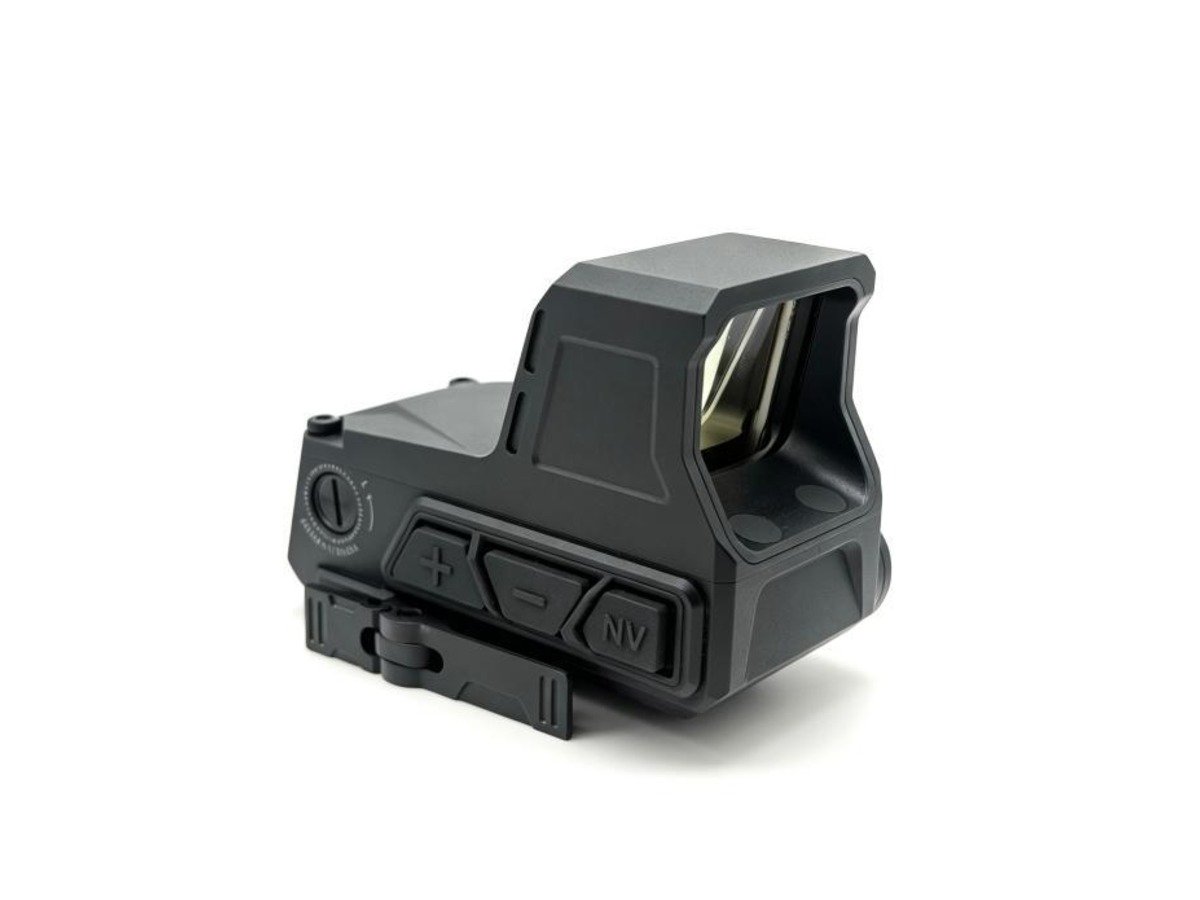

The WGHS01 is a 1x optical waveguide sight for submachine guns, assault rifles and other medium-range weapons. It supports binocular, both-eyes-open aiming at targets within 300 metres, with an automatic brightness system that adapts the reticle to ambient light.
Battery life sets it apart from conventional red-dot sights: at least 5000 hours of continuous operation from a single CR123A at medium brightness, with automatic standby power saving. For OEM and ODM customers, the brand and model name can be marked directly on the sight body.
Why the WGHS01
- 5000+ hours runtime — five times the life of a typical 1000-hour red dot, from the same single CR123A.
- Binocular aiming to 300 m with automatic brightness adaptation to ambient light.
- IP68 + 1200 G — full immersion sealing and the highest shock rating in this class.
- 7 reticle patterns including 2.5 MOA dot, 65 MOA circle and crossline combinations.
- OEM / ODM branding — your brand and model marked on the sight body.
Technical Specifications
| Model | WGHS01 |
|---|---|
| Magnification | 1× |
| Aiming | Binocular (both eyes open) |
| Effective range | within 300 m |
| Reticle patterns | 7 types: 2.5 MOA dot / 65 MOA circle / dot+circle / crossline / crossline+dot / crossline+circle / crossline+25 MOA dot+65 MOA circle |
| Battery | CR123A |
| Continuous runtime | ≥ 5000 hours (medium brightness) |
| Brightness levels | 20 daytime + 10 night vision |
| Battery check | Manual active check |
| Low battery alert | Flashing reticle |
| Auto standby | Power saving supported |
| Machining | CNC machined |
| Click adjustment range | ± 40 MOA (elevation and windage) |
| Click adjustment increment | 0.5 MOA per click |
| Mount | Standard Picatinny rail |
| Overall dimension | 80 × 58 × 58 mm |
| Sight height (bore axis offset) | 42 mm |
| Weight | 240 g (excluding battery) |
| Operating temperature | −40 °C to +65 °C |
| Storage temperature | −45 °C to +70 °C |
| Shock resistance | 1200 G |
| Waterproof rating | IP68 |
| OEM marking | Customer brand and model can be marked on the sight body |
H2S or WGHS01?
| Model | H2S | WGHS01 |
|---|---|---|
| Type | Holographic | Optical waveguide |
| Runtime (medium brightness) | ≥ 1000 h | ≥ 5000 h |
| Operating temperature | −40 to +55 °C | −40 to +65 °C |
| Weight | 240 g | 240 g |
| Shock / waterproof | 1200 G / IP68 | 1200 G / IP68 |
| OEM branding on body | — | Yes |
Frequently Asked Questions
What is an optical waveguide sight?
It uses a waveguide combiner to project the reticle into the line of sight while keeping the sight body compact. Both eyes stay open, giving full peripheral vision.
How long does the battery last?
At least 5000 hours of continuous operation at medium brightness on one CR123A, with automatic standby power saving when the sight is not being used.
Can we have our own brand on the sight?
Yes. For OEM and ODM customers the brand and model name can be marked directly on the sight body. Contact us with your artwork and volume.
What is the effective range?
Binocular aiming is specified for targets within 300 metres.
Which reticles are available?
Seven patterns: 2.5 MOA dot, 65 MOA circle, dot + circle, crossline, crossline + dot, crossline + circle, and crossline + 25 MOA dot + 65 MOA circle.
Is it waterproof?
Yes, IP68 rated, and shock rated to 1200 G.
