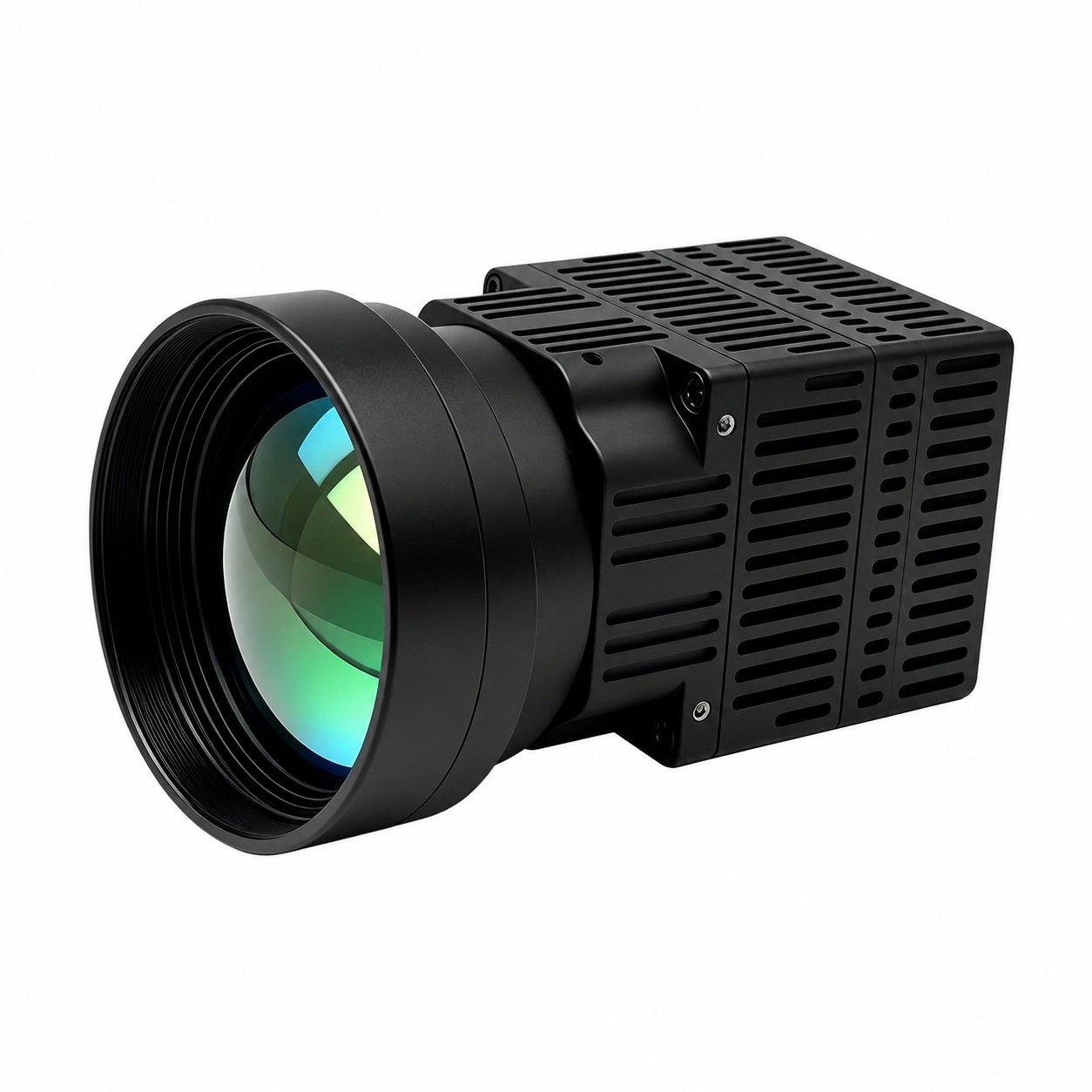

ERUTM128-50 1280×1024 Uncooled VOx Thermal Imaging Core for OEM Integration
The ERUTM128-50 is a high-performance 1280×1024 uncooled thermal imaging core designed for OEM manufacturers and system integrators developing advanced thermal imaging equipment. Featuring a state-of-the-art VOx infrared detector with a 12μm pixel pitch, the module delivers exceptional thermal image quality, high target recognition capability, and reliable performance in demanding environments.
Engineered for seamless integration, the ERUTM128-50 supports a wide range of digital video interfaces and communication protocols, enabling rapid deployment into thermal cameras, UAV payloads, security systems, industrial monitoring equipment, marine observation devices, and vehicle-mounted thermal imaging platforms.
With a thermal sensitivity of ≤30mK NETD, the module can detect extremely small temperature differences, providing clear thermal imagery even in low-contrast scenes. The uncooled architecture eliminates the need for cryogenic cooling systems, resulting in lower power consumption, reduced maintenance requirements, and improved system reliability.
Key Features
- 1280×1024 high-resolution VOx infrared detector
- 12μm pixel pitch for enhanced thermal detail
- ≤30mK NETD thermal sensitivity
- LWIR spectral range of 8–14μm
- Multiple digital video output formats
- Shutterless imaging support
- Advanced image enhancement algorithms
- Low power consumption of ≤1.2W
- Compact design optimized for OEM integration
- Windows and Linux SDK support
Designed for Professional Thermal Imaging Systems
The ERUTM128-50 thermal imaging core is suitable for applications requiring long-range thermal detection, high-definition thermal imaging, and stable performance under harsh operating conditions. Its compact structure and flexible interface options allow manufacturers to shorten development cycles and accelerate product deployment.
Typical integration projects include:
- UAV thermal payload systems
- Border and perimeter surveillance cameras
- Industrial inspection and predictive maintenance equipment
- Marine navigation and search-and-rescue systems
- Vehicle-mounted thermal vision platforms
- Smart security and monitoring solutions
Why Choose ERUTM128-50
Combining ultra-high 1280×1024 resolution, advanced VOx sensing technology, and low-power operation, the ERUTM128-50 offers OEM developers a reliable thermal imaging platform for next-generation infrared products. The module is specifically designed to simplify integration while delivering professional-grade thermal imaging performance across industrial, security, defense, and commercial markets.
| Item | ERUTM128-50 | |
| Infrared Detector | ||

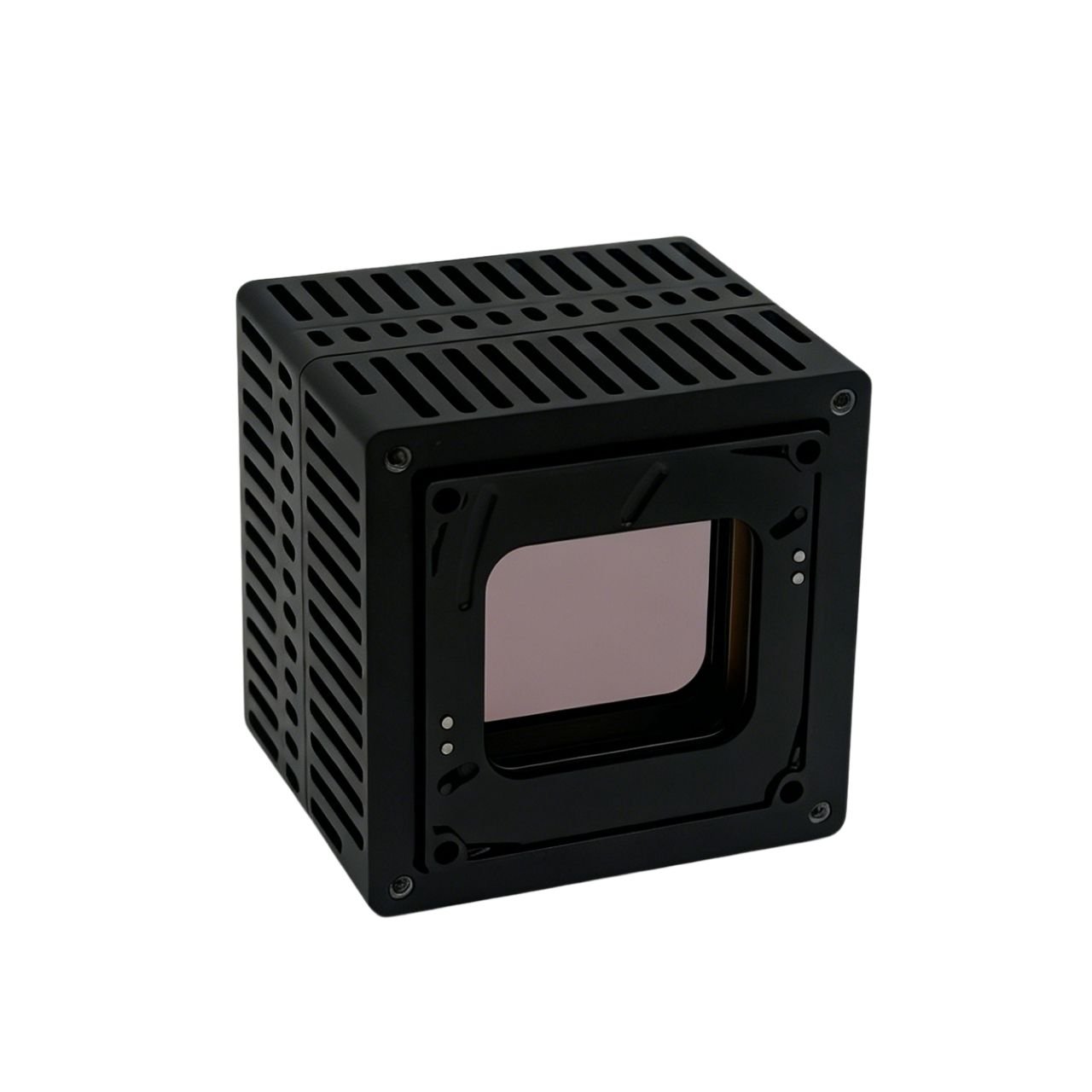

| Infrared Detector | Uncooled Vanadium Oxide | |
| Resolution / Pixel Pitch | 1280×1024/12μm | |
| Spectral Wavelength | 8~14μm | |
| NETD | ≤30mk/F1.0/25℃ | |
| Image Processing | ||
| Effective Pixels | 1280×1024 | |
| Frame Rate | 25Hz/30Hz/50Hz | |
| Digital Video Formats | YUV420/YUV422/RGB888/RAW | |
| Boot Time | ≤7s | |
| Image Algorithms | NUC/DRC/DNS/DDE/SFFC | |
| Super-Resolution Algorithms | Supported | |
| Shutterless | Supported | |
| Palette Mode | Black Hot / White Hot / Pseudocolor | |
| Digital zoom | Center zoom: 1x/2x/4x/8x | |
| Image Mirror | Horizontal / Vertical / Diagonal | |
| Image brightness | Auto / Manual | |
| Image contrast | Auto / Manual | |
| Compensation mode | Manual | |
| Physical Interface | ||

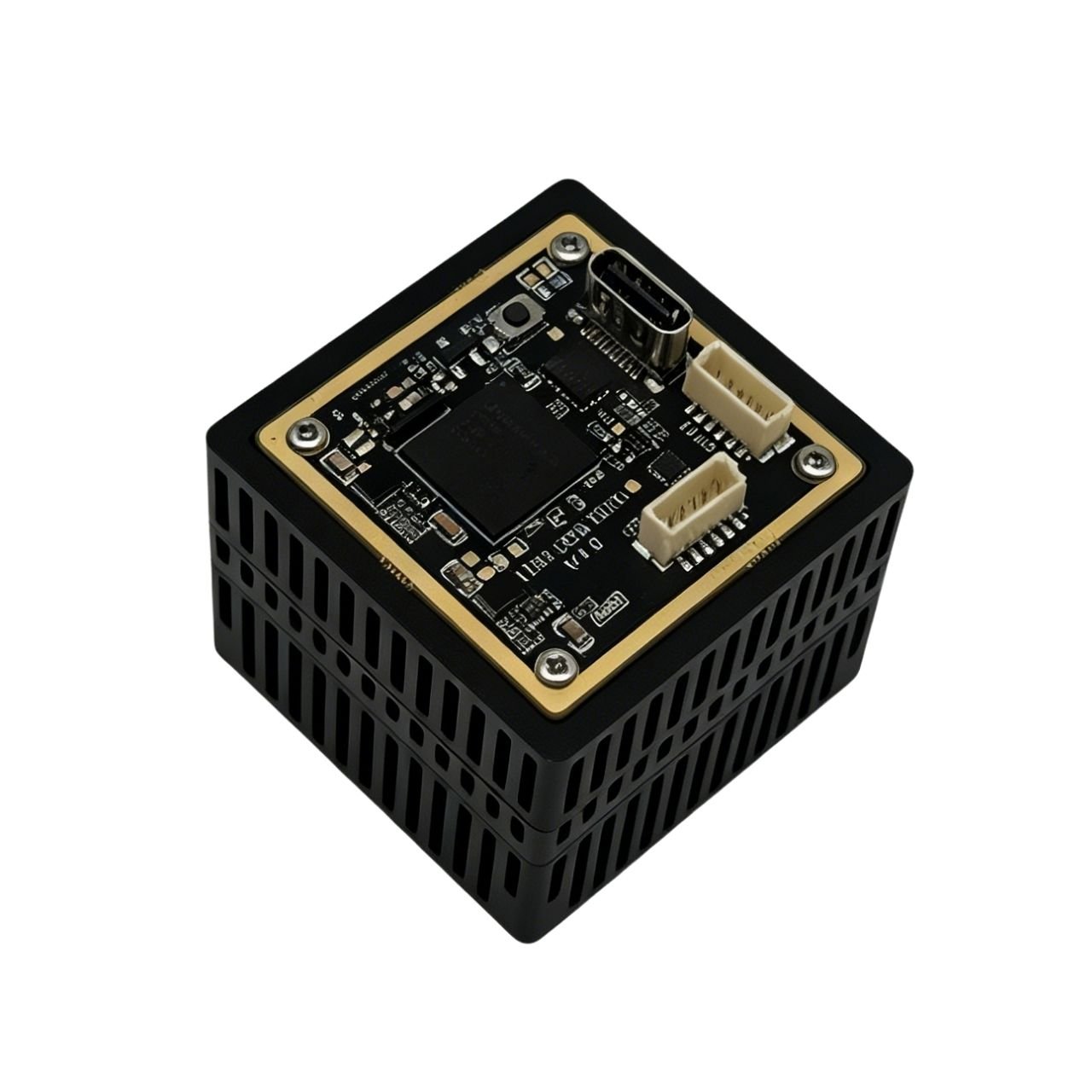

| External Expansion Interface | 50pin： BP040SB-50-0114-B-R0 | |
| Communication Mode | TTL-232/USB3.0 | |
| Digital Video Interface | DVP16/BT1120/USB3.0/MIPI-DSI-4LANE | |
| Expansion Modules | USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/ MIPI-CSI-2LANE | |
| Power Supply Interface | ||
| Power Supply Voltage | 2.7V-5.3V | |
| Power Consumption | ≤1.2W@25hz@23±3℃ | |
| Software | ||
| Host Computer | Compatible with Windows | |
| SDK | Windows & Linux version supported (USB3.0) | |
| System Functions | ||
| One-Click Parameter Recovery | Supported | |
| Menu Setting | Customizable | |
| Menu Language | Chinese / English | |
| PIP | Supported; optional top-left/top-middle/top-right with reticle | |
| Hot Spot Tracking | Supported | |
| Types of Reticles | 10 types | |
| Reticle Brightness | 10 types | |
| Reticle Color | Red, blue, yellow, black, white | |
| Reticle Settings | Supported types; brightness and color settings can be saved | |
| Zeroing | Supported | |
| Buttons | Supports ≥4 buttons (Power/Menu/Custom) | |
| OLED Driving | Support I2C, 16bit/24bit parallel interface; directly drive MicroOLED MDP03/MDP02, Olightek SVGA060, Sony ECX334A; support MIPI driving for IBOE VX039FHP-NH4 | |
| Physical Parameters | ||
|

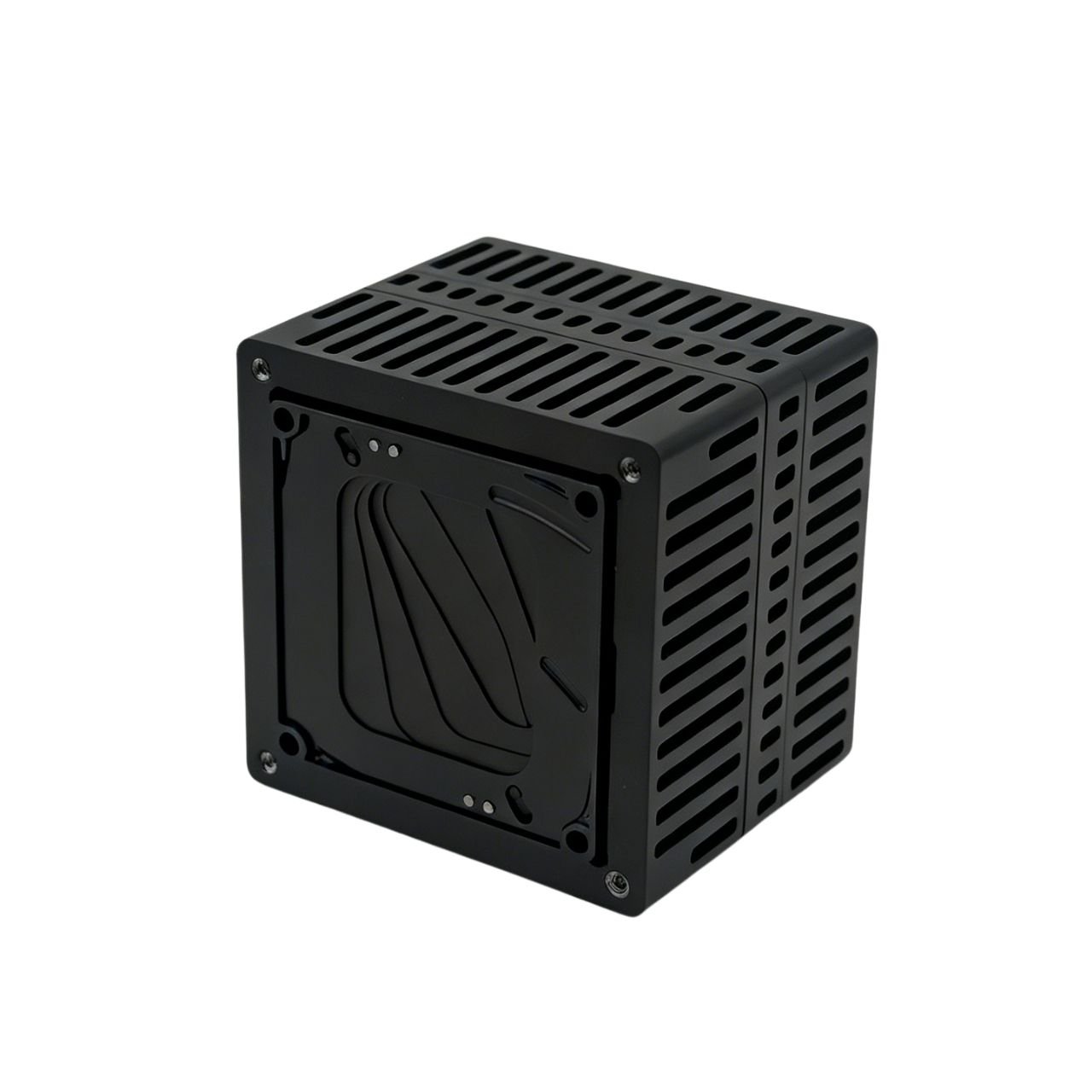

Physical Dimension (Bare Core) | 38×39×28mm (Fixed focal: 14mm/19mm/25mm/35mm) | 68×69×24.7mm (Fixed focal：50mm，Motorized focus:75mm/100mm/150mm，Continuous zoom 25~75mm/28~90mm/30~180mm/30~300 mm) |
Frequently Asked Questions
What detector technology is used in ERUTM128-50?
The ERUTM128-50 uses an advanced uncooled vanadium oxide (VOx) infrared detector with a 1280×1024 resolution and 12μm pixel pitch.
What is the thermal sensitivity of ERUTM128-50?
The module provides a NETD of ≤30mK, allowing it to detect subtle temperature differences and improve target recognition performance.
Can ERUTM128-50 be integrated into UAV thermal payloads?
Yes. The compact design, low power consumption, and multiple digital output interfaces make it suitable for UAV thermal imaging payload integration.
Does ERUTM128-50 support OEM customization?
Yes. The module is designed specifically for OEM integration and supports customized development based on project requirements.
What industries commonly use ERUTM128-50?
Typical applications include industrial inspection, perimeter security, UAV surveillance, marine observation, vehicle-mounted thermal imaging, and smart monitoring systems.
